BRAND: Ubiquiti
Ubiquiti

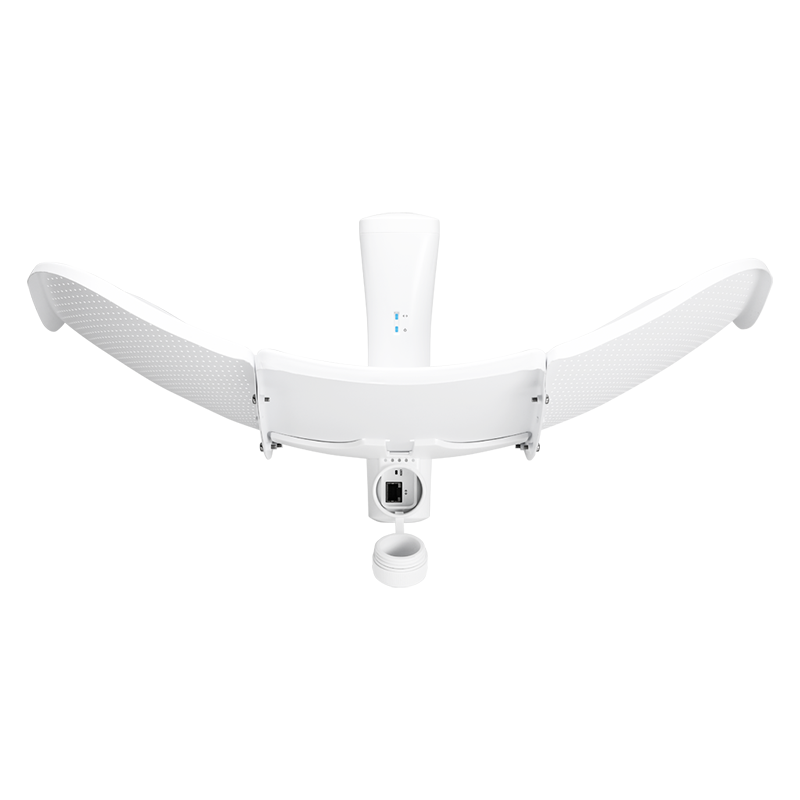

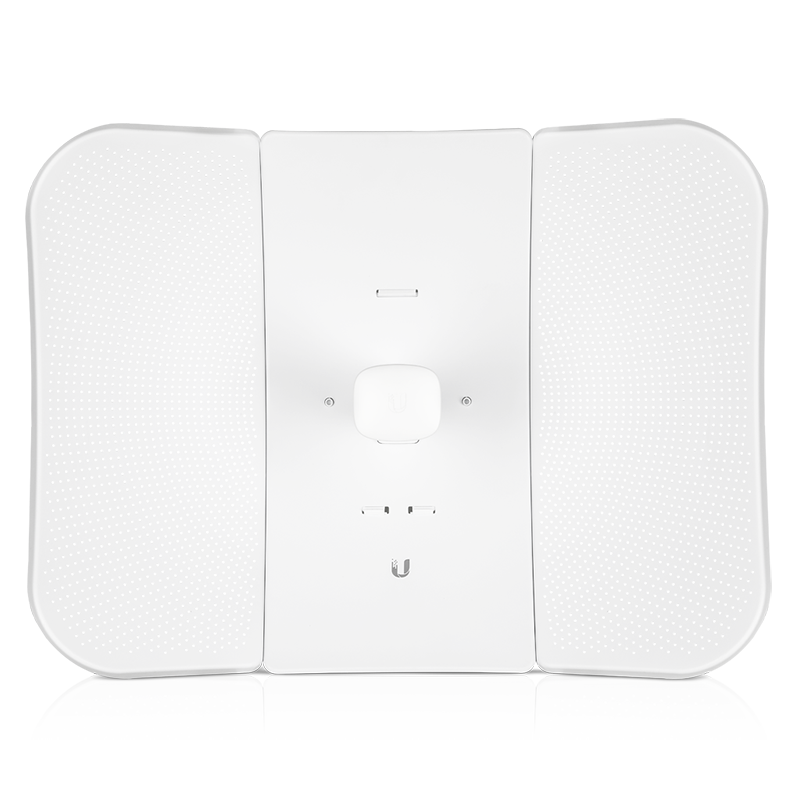

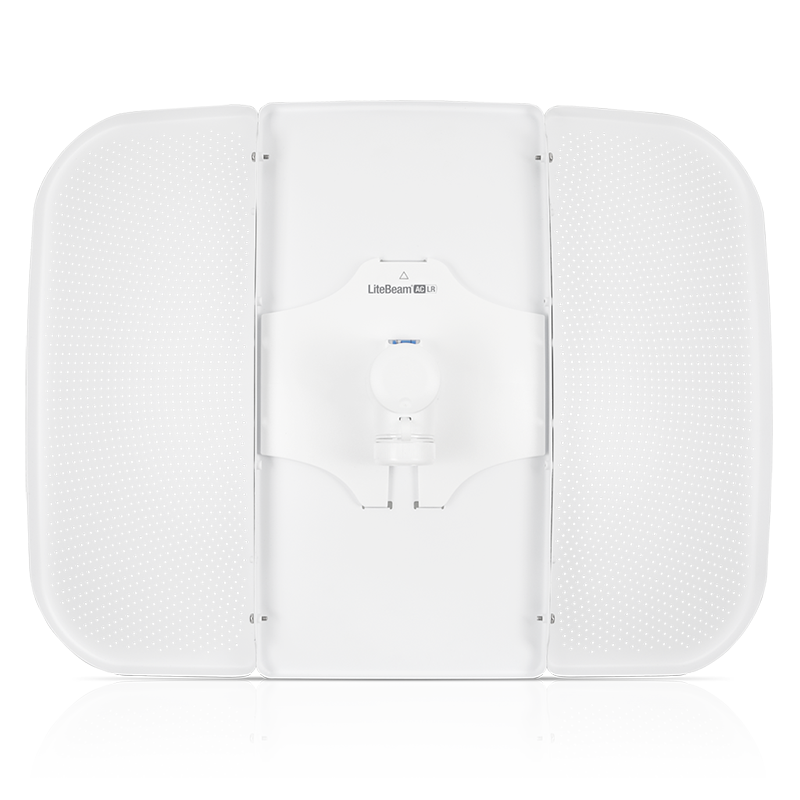

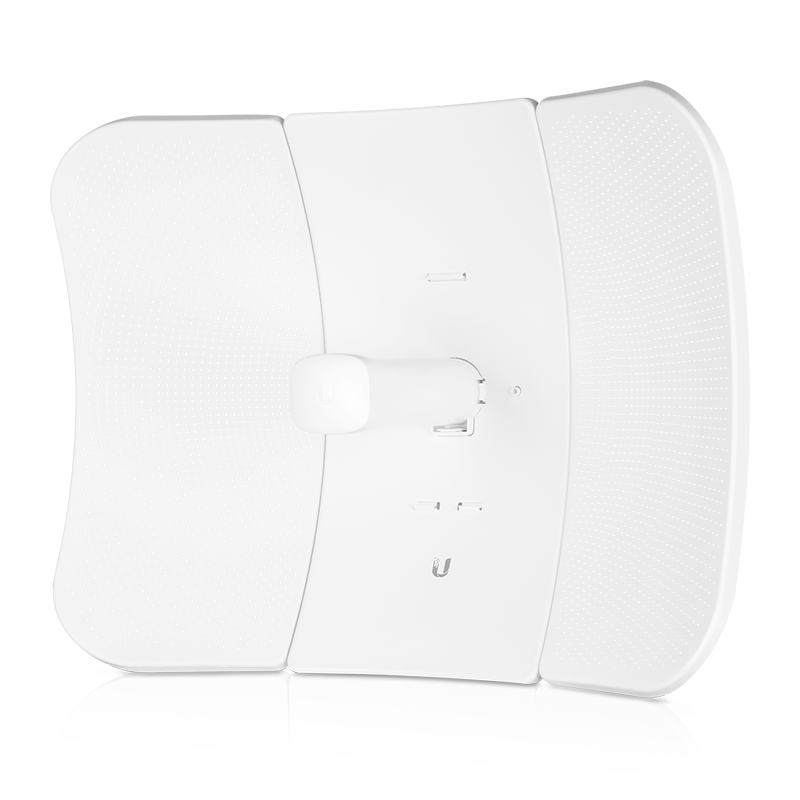

airMAX LiteBeam AC 5 GHz Long-Range Station

$109.00

The LiteBeam 5AC Long Range is an affordable airMAX AC CPE designed for long-distance links. Reach new customers and still maintain your great ROI.

Availability: 20 in stock

SKU: LBE-5AC-LR-US Category:

airMAX LiteBeam AC 5 GHz Long-Range Station

Brand

Ubiquiti

Dimensions

512 x 385.75 x 258.3 mm (20.18 x 15.19 x 10.17")

Weight

Without Mount: 1.360 kg (2.998 lb), With Mount 1.735 g (3.825 lb)

Power Supply

24V, 0.3A Gigabit PoE Adapter (Included)

Max. Power Consumption

7W

Power Method

Passive PoE (Pairs 4, 5+; 7, 8 Return)

Supported Voltage Range

24V ± 10%

Gain

26 dBi

Networking Interface

(1) 10/100/1000 Ethernet Port

Processor Specs

MIPS 74Kc

Memory

64 MB DDR2

LEDs

Power, Ethernet

Channel Sizes

PtP Mode: 10/20/30/40/50/60/80 MHz
PtMP Mode: 10/20/30/40 MHz

Enclosure Characteristics

Reflector (Aluminium) / Plastic: PC

Mounting

Pole-Mounting Kit (Included)

Wind Loading

550 N @ 200 km/h (123.6 lbf @ 125 mph)

Wind Survivability

200 km/h (125 mph)

ESD/EMP Protection

± 24 kV Contact / Air

Operating Temperature

-40 to 70° C (-40 to 158° F)

Operating Humidity

5 to 95% Noncondensing

Certifications

CE, FCC, IC
