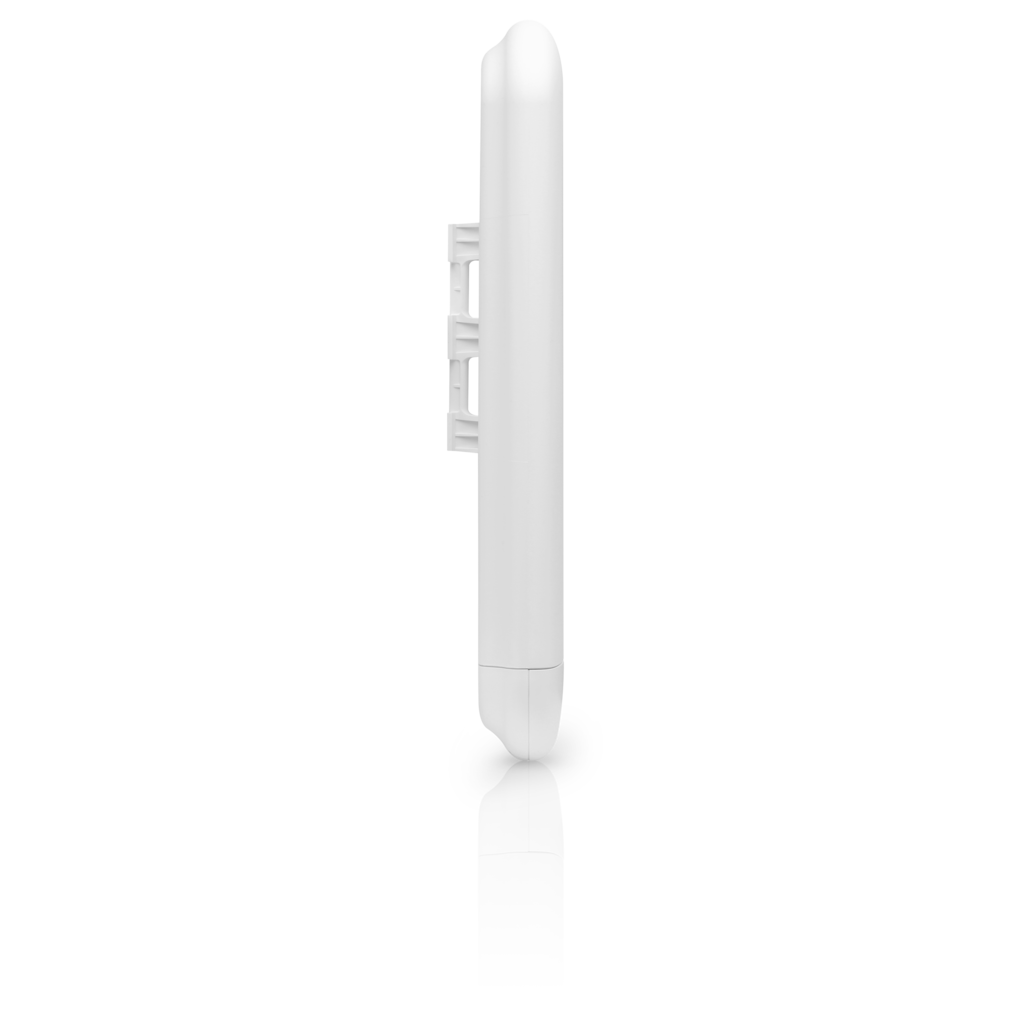

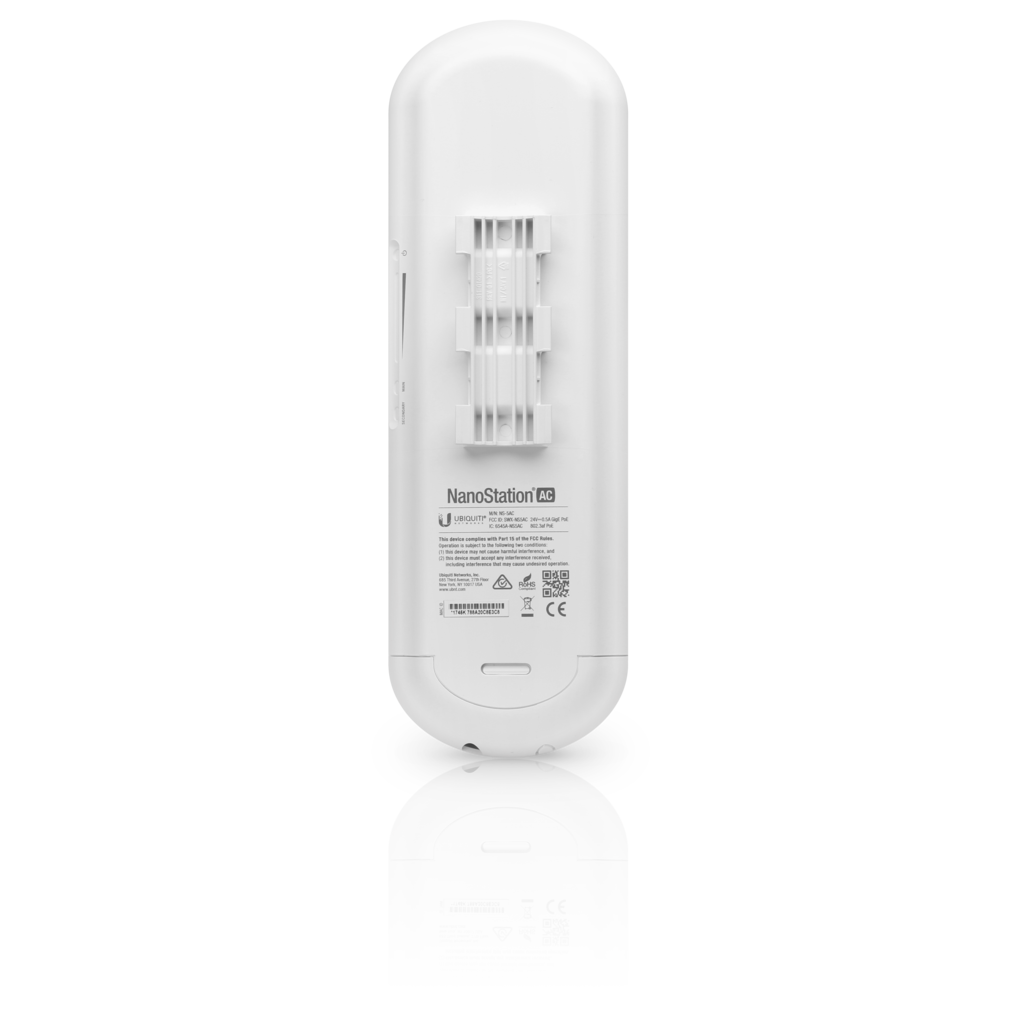

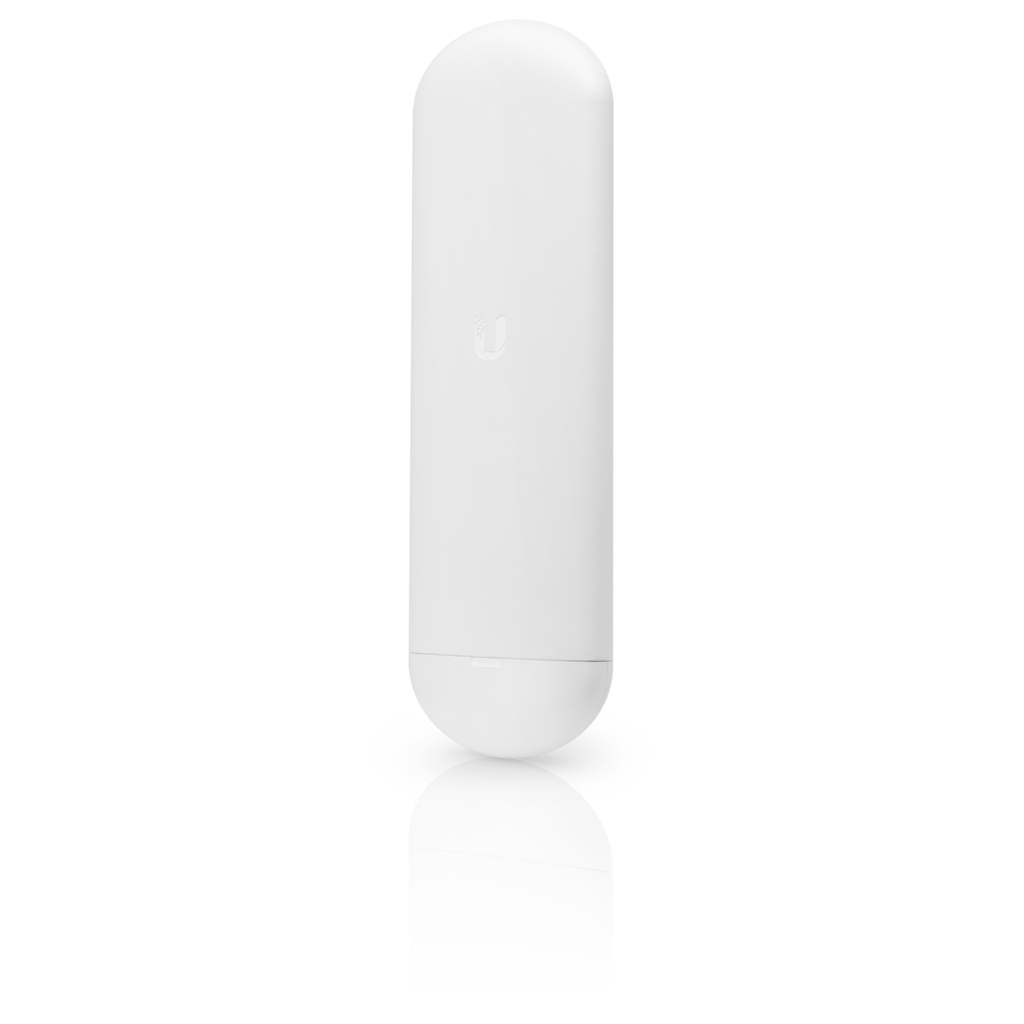

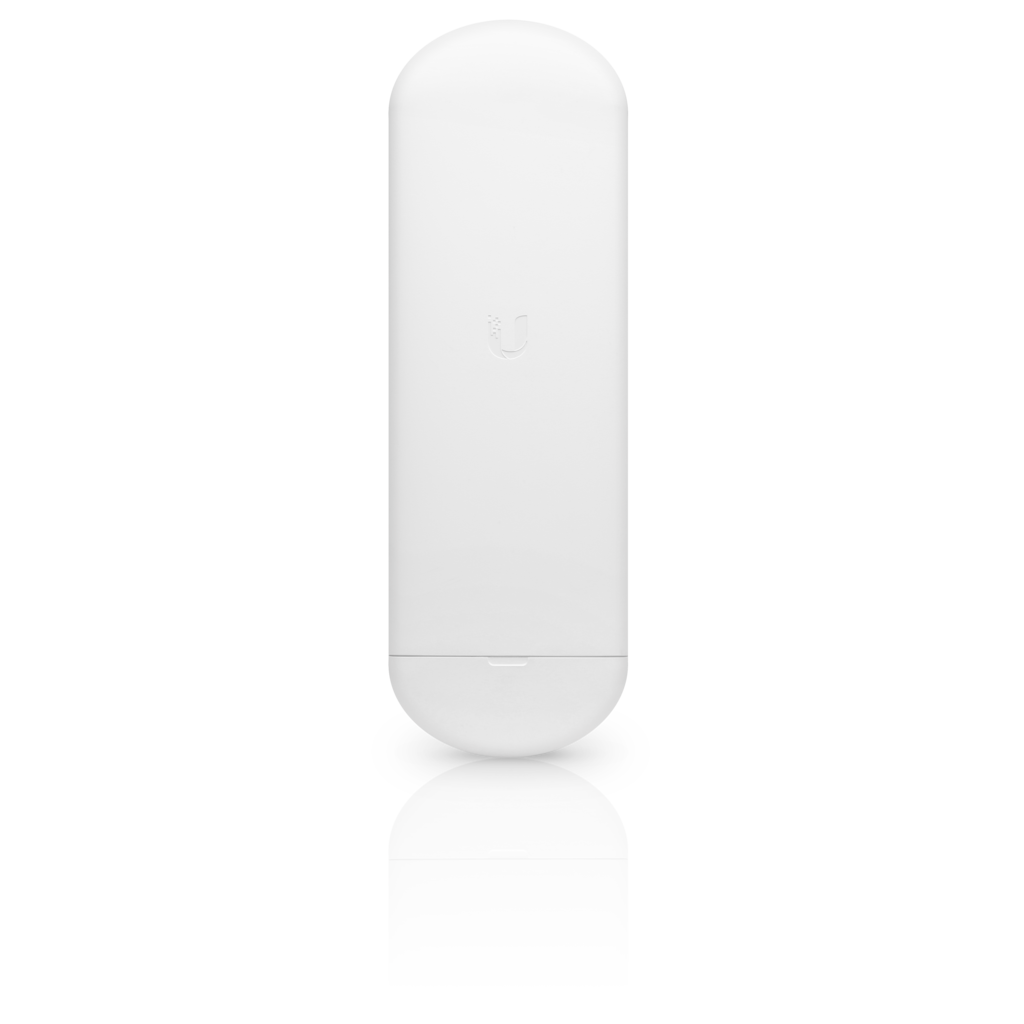

airMAX NanoStation AC 5 GHz Radio
BRAND: Ubiquiti
airMAX NanoStation AC 5 GHz Radio
$129.00
Classic NanoStation design with updated proprietary airMAX ac chipset and dedicated management Wi-Fi for easy UNMS mobile app support and fast setup. Excellent solution for a simple PtP bridge or use as a PtMP station (CPE).
Out of stock
Brand
Ubiquiti
| Dimensions With Mount | 257 x 84 x 30 mm (10.12 x 3.31 x 1.18") |
|---|---|
| Dimensions Without Mount | 257 x 84 x 41 mm (10.12 x 3.31 x 1.61") |
| Weight | 233 g (8.22 oz) |
| Gain | 16 dBi |
| Max. Power Consumption | 9W |

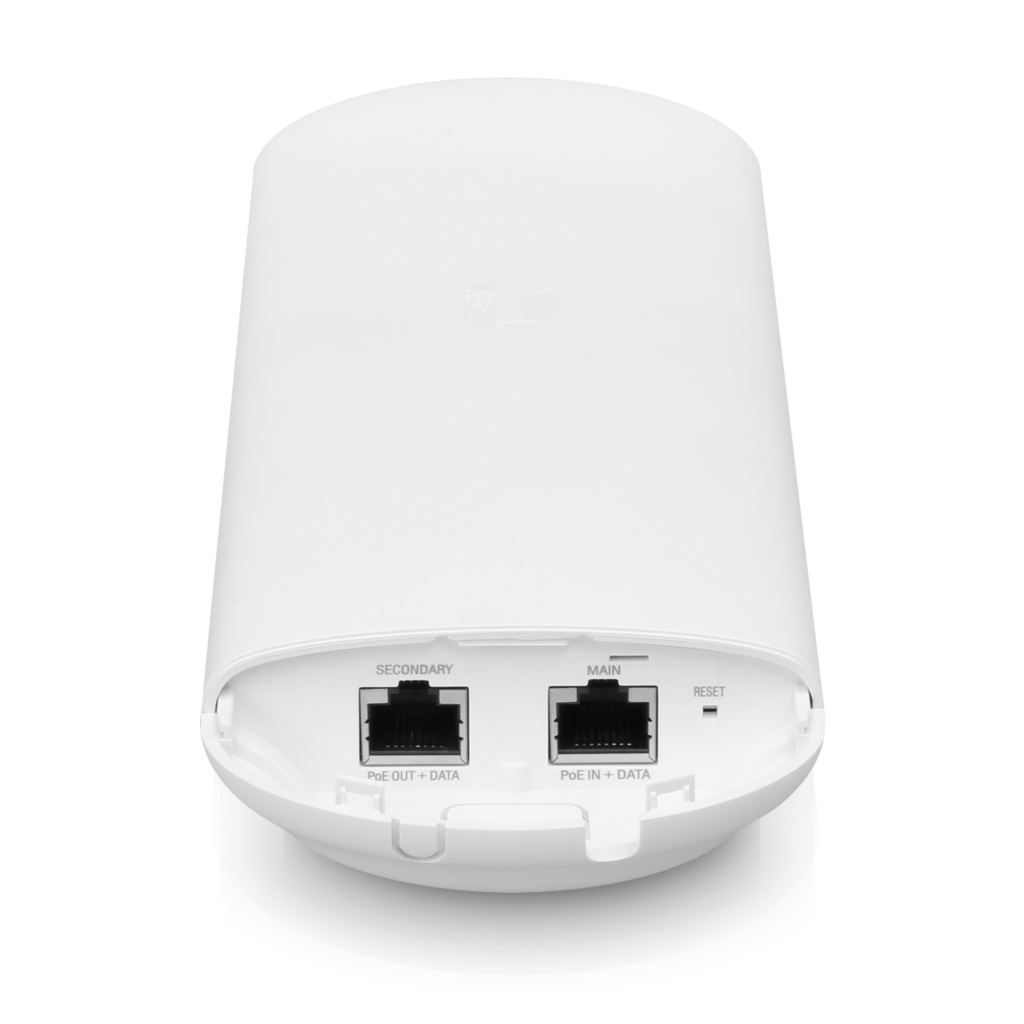

| Networking Interface | (2) 10/100/1000 Ethernet Ports |
| LEDs | Power, ETH1, ETH2, (4) Signal Strength |
| Power Supply | 24VDC, 0.5A Gigabit PoE Adapter |
| Power Method | 802.3af or Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Supported Voltage Range | 24V ±10% |
| Mounting | Pole and Wall Mounting Kits Included |
| ESD/EMP Protection | ±24 kV Contact/Air |
| Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| OPERATING FREQUENCY (MHZ) | — |
| USA | — |
| U-NII-1 | 5150-5250 |
| U-NII-2A | 5250-5350 |
| U-NII-2C | 5240-5725 |
| U-NII-3 | 5725-5850 |
| MANAGEMENT RADIO (MHZ) | —- |
| Worldwide | 2412 – 2472 |
| US/CA | 2412 – 2462 |
