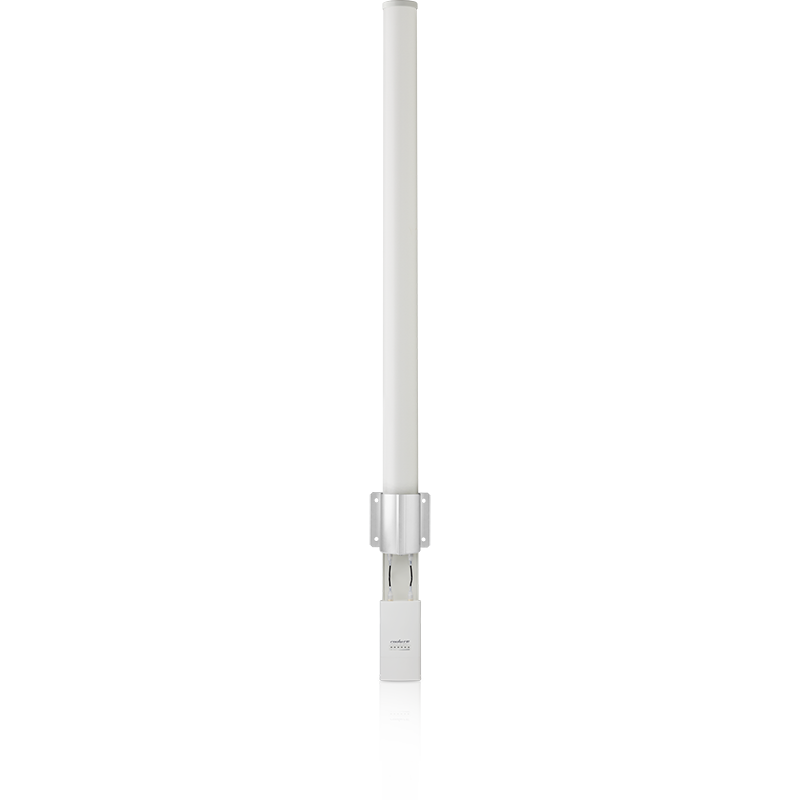

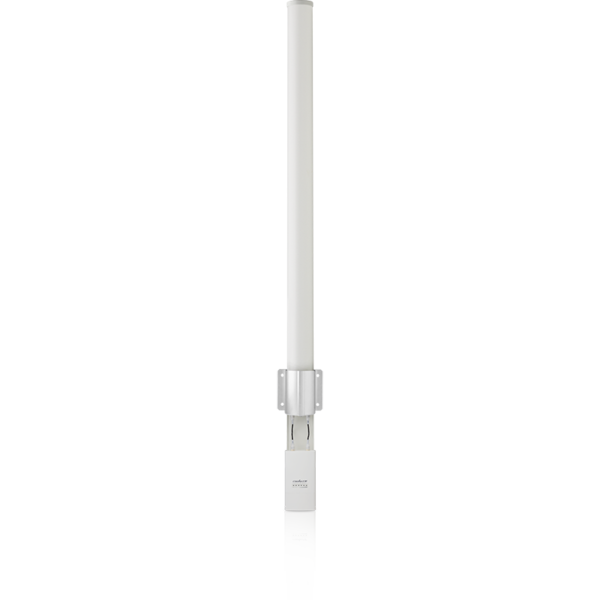

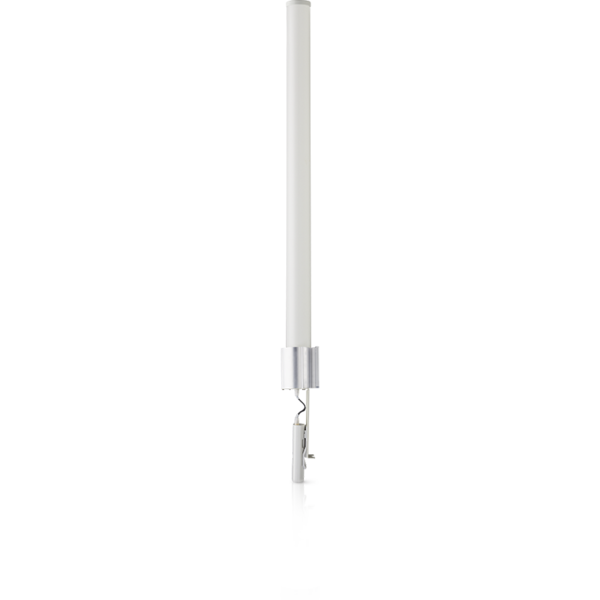

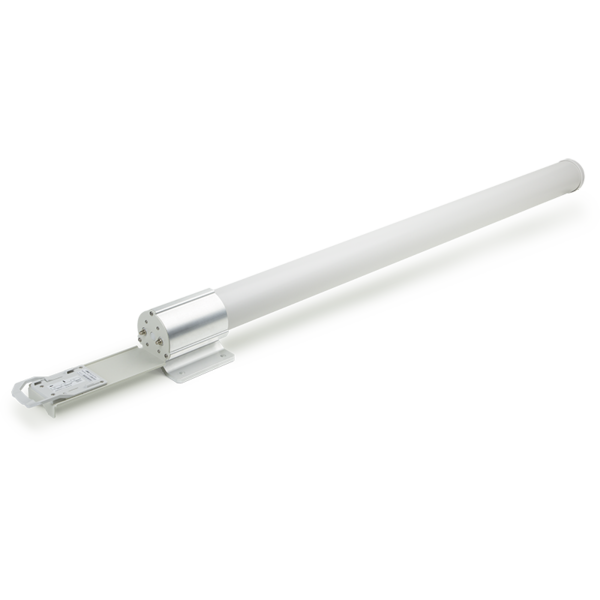

airMAX Omni 2.4 GHz, 13 dBi Antenna
BRAND: Ubiquiti
airMAX Omni 2.4 GHz, 13 dBi Antenna
$245.00
-
- The airMAX® Omni Antenna is a carrier-class 2×2 dual-polarity MIMO omnidirectional antenna designed to seamlessly integrate with Rocket radios (Rocket sold separately). On the right is one example of how the airMAX Omni Antenna can be deployed in a Point-to-MultiPoint (PtMP) network.
- The airMAX Omni Antenna provides powerful 360° coverage, 2×2 MIMO performance in Line-of-Sight (LoS) or Non-Line-of-Sight (NLoS) applications.
Out of stock
Brand
Ubiquiti
| Dimensions (mm) | 1390 X 122 X 105 |
|---|---|
| Weight | 2.4 kg |
| Frequency Range | 2.35 – 2.55 GHz |
| Gain | 13 dBi |
| Elevation Beamwidth | 7° |
| Max. VSWR | 1.7:1 |
| Downtilt | 2° |
| Wind Survivability | 125 mph |
| Wind Loading | 16 lb @ 100 mph |
| Polarization | Dual-Linear |
| Cross-pol Isolation | 25 dB min. |
| ETSI Specification | EN 302 326 DN2 E |
| Mounting | Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included |
