LTU Pro
BRAND: Ubiquiti
LTU Pro
$179.00
Incorporating innovative industrial design with advanced technology, the LTU Pro is a Point-to-MultiPoint (PtMP) 5 GHz high-performance subscriber station. Based on Ubiquiti’s proprietary LTU technology, the LTU Pro is not impeded by the limitations of standard 802.11 Wi-Fi technology. It features an integrated high-gain dish for long range and high performance. Channel width flexibility (10/20/30/40/50 MHz) allows independent TX and RX channel frequency configurations anywhere within the radio band to avoid local interference.
Availability: 50 in stock
Brand
Ubiquiti
| Dimensions | 316.5 x 316.5 x 174.3 mm |
|---|---|
| Weight | 1.3 kg |
| Networking Interface | (1) 10/100/1000 Ethernet Port |
| Enclosure | Outdoor UV Stabilized Plastic |
| Max. Power Consumption | 9W |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter (Included) |
| Power Method | 24V Passive PoE (Pairs 4, 5+; 7, 8-) |
| Voltage Range | 22 -26V |
| Max. Conducted TX Power | 22 dBm (per Chain) |
| Gain | 24 dBi |
| Beamwidth | 14° |
| Sidelobe Level | -10 dB |
| Front-to-Back Ratio | 27 dB |

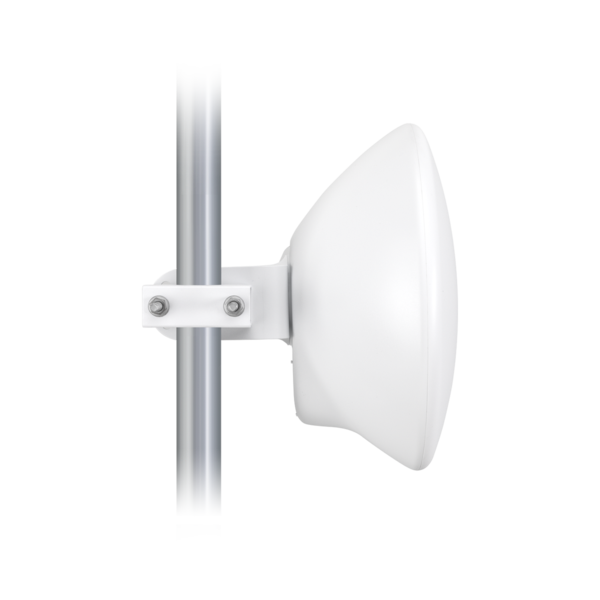

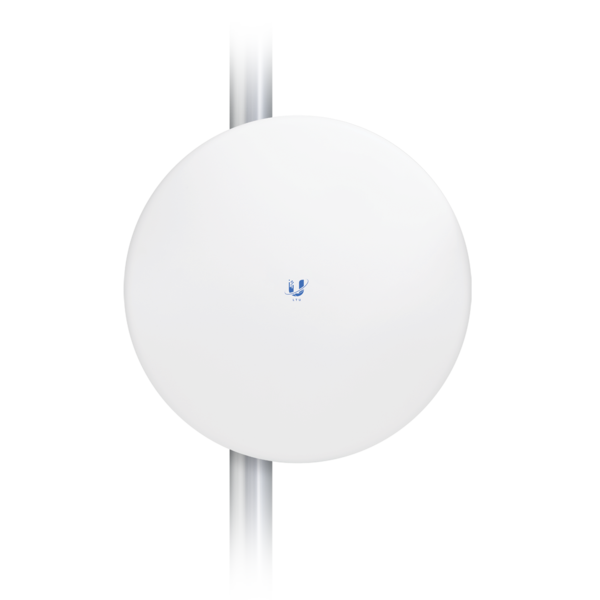

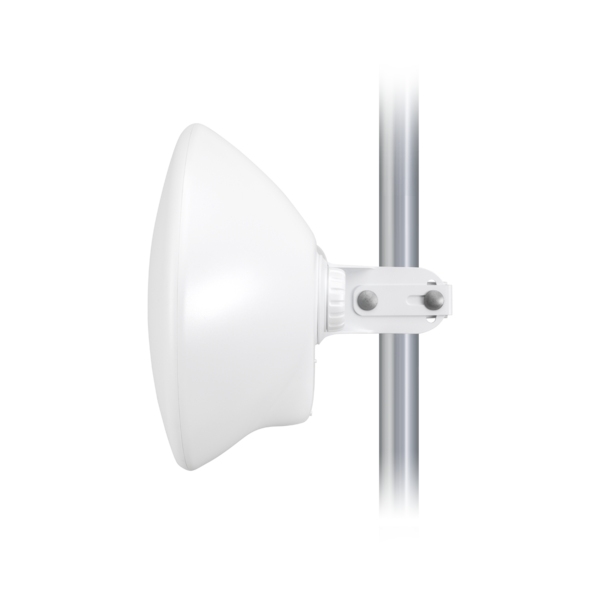

| Mounting | Pole-Mount (Kit Included) |
| Wind Loading | 150 N @ 200 km/h |
| Wind Survivability | 200 km/h |
| ESD/EMP Protection | ± 24kV Contact/Air |
| Operating Temperature | -5 to 40° C |
| Operating Humidity | 10 -90% Noncondensing |
| Certifications | CE, FCC, IC |
| OPERATING FREQUENCY (MHZ) | — |
| Worldwide | 2400 -2483.5* |
| US/CA | — |
| U-NII-1 | 5150 -5250 |
| U-NII-2A | 5250 -5350 |
| U-NII-2C | 5470 -5725 |
| U-NII-3 | 5725 -5850 |
| EU | 2400 -2483.5 |
