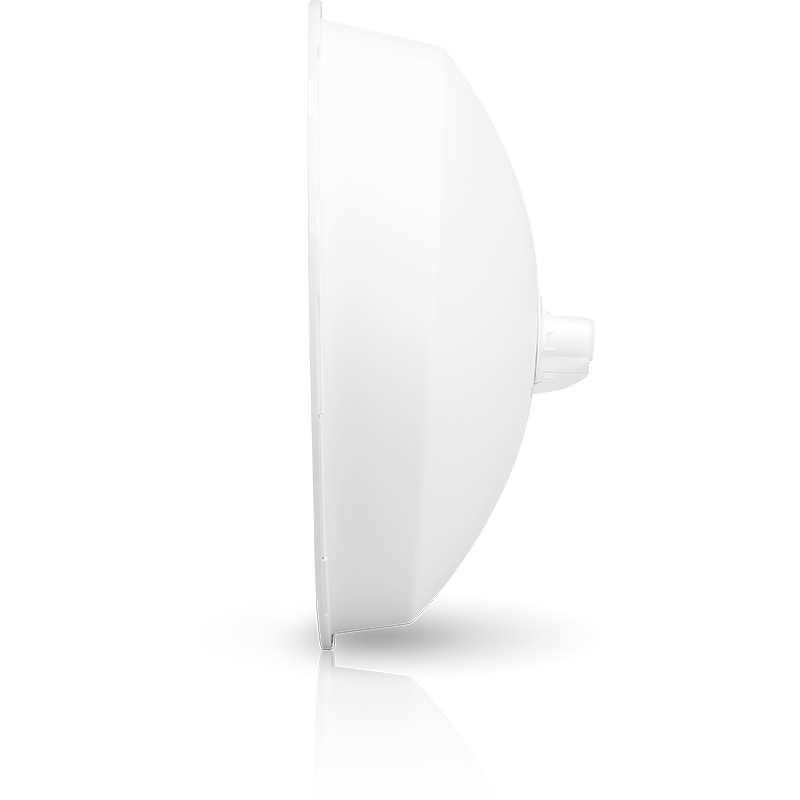

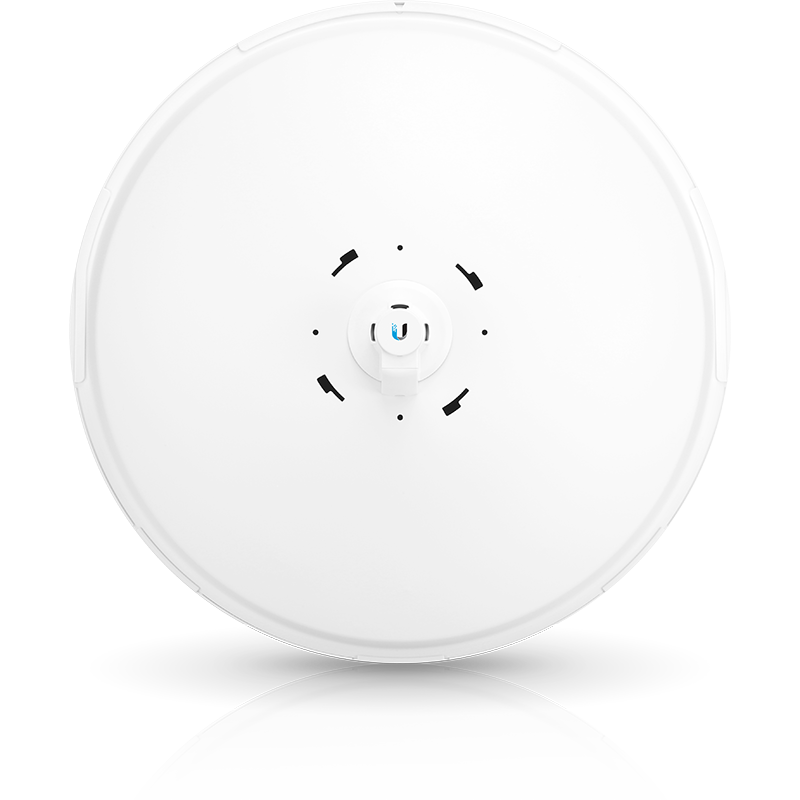

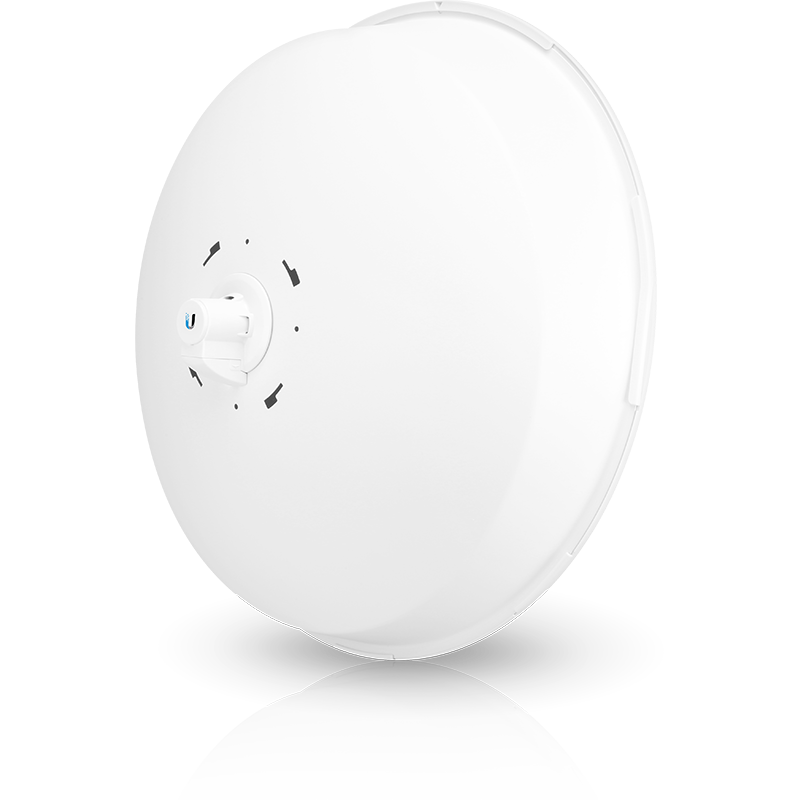

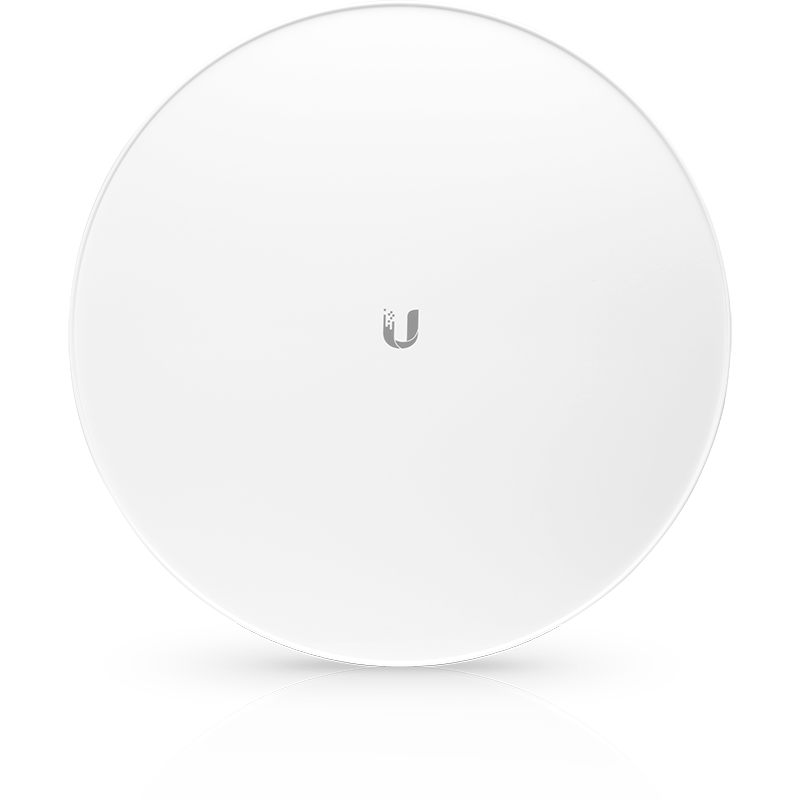

PowerBeam 5AC 500 ISO
BRAND: Ubiquiti
PowerBeam 5AC 500 ISO
$185.00
5 GHz airMAX® ac Bridge with RF Isolated Reflector Incorporating advanced engineering with proprietary airMAX ac technology, the PowerBeam® ac ISO is ideal for deployments requiring maximum performance and RF isolation.
Out of stock
Brand
Ubiquiti
| Dimensions | — |
|---|---|
| Weight | — |
| Radome Excluded | 2.35 kg (5.18 lb) |
| Radome Included | 3.15 kg (6.95 lb) |
| Power Supply | 24V, 0.5A Gigabit PoE |
| Max. Power Consumption | 8.5W |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Supported Voltage Range | 20-26VDC |
| Networking Interface | (1) 10/100/1000 Ethernet Port |
| Processor Specs | Atheros MIPS 74Kc, 720 MHz |
| Memory | 128 MB DDR2, 16 MB Flash |
| LEDs | (1) Power, (1) LAN, (4) WLAN |
| Signal Strength LEDs | Software-Adjustable to Correspond to Custom RSSI Levels |
| Max. VSWR | 1.5:1 |
| Channel Sizes | — |
| PtP Mode | 10/20/30/40/50/60/80 MHz |
| PtMP Mode | 10/20/30/40 MHz |
| Polarization | Dual Linear |
| Enclosure | Outdoor UV Stabilized Plastic |
| Mounting | Pole-Mount (Kit Included) |
| Wind Loading | 264.6 N @ 96 km/h |
| Wind Survivability | 96 km/h |
| ESD/EMP Protection | Air: ± 24 kV, Contact: ± 24 kV |
| Operating Temperature | -40 to 70° C |
| Operating Humidity | 5 to 95% Noncondensing |
| Wireless Approvals | FCC, IC, CE |
| RoHS Compliance | Yes |
| Salt Fog Test | IEC 68-2-11 (ASTM B117), |
| Vibration Test | IEC 68-2-6 |
| Temperature Shock Test | IEC 68-2-14 |
| UV Test | IEC 68-2-5 at 40° C (104° F), |
| Wind-Driven Rain Test | ETS 300 019-1-4, |
| Gain | 27 dBi |
| OPERATING FREQUENCY MHZ | — |
| Worldwide | 5150 – 5875 |
| USA | — |
| U-NII-1 | 5150 – 5250 |
| U-NII-2A | 5250 – 5350 |
| U-NII-2C | 5470 – 5725 |
| U-NII-3 | 5725 – 5850 |
