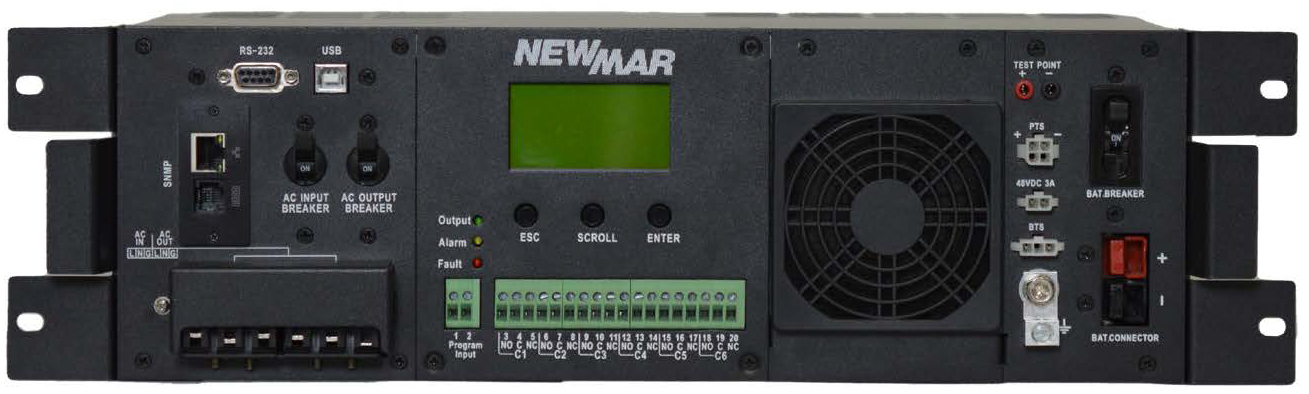

Rugged AC UPS Series

Features
Wide range of Automatic Voltage Regulation (AVR)
Temperature compensated charging
Fast transfer time < 5ms typical SNMP network card, RS-232 and USB ports included LCD screen for quick access to system diagnostics Front panel connections for easy install Forced air cooled with fan filter (field replaceable) Alarm contacts (six sets) 19” rack or cabinet mounting AC Wiring: hard wired AC input/output Specifications Input Voltage Range: 88 - 152V AC, User Programmable. Default set @ 100 - 130V AC Transfer time (typical): UPS Mode: 5ms Normal Mode: 20ms Generator Mode: 25ms Site Fault Detection: Yes Efficiency (Line Mode): 95% typical Output Waveform: Pure sine wave Nominal Output Voltage: 120V AC, +/- 5% Output Frequency: 50/60 Hz +/- 0.1% Nominal DC Voltage: 48V DC (2000V A and 1200V A) 24V DC (700V A) Low DC Voltage Warning: 48V DC: 42 - 55V DC (adjustable) 24V DC: 21 - 27.5V DC (adjustable) No Load Power Consumption: 28 watts at rated nominal DC Voltage THD (Bat. Mode) <3% (full resistive load) Load Crest Factor: 3:1 @ rated load Specifications Overload Protection: 5s @ ≥ 125 - 150% load 60s @ 110 - 125% load Output Short Circuit Protection: Output breaker/electronic current limit/firmware Surge Capacity: 200% (rated power for 5 secs) Back Feed Protection: Yes Charging Current: 2A/4A/6A/8A/10A adjustable Charging Algorithm: 3 step Operating Temperature: -40° to 80° C Storage Temperature: -50° to 80° C Relative Humidity: 5 to 95% non-condensing Audible Noise: < 53dB Cooling: Forced air, field replaceable fan and filtered EMI: Class A FCC/CISPR [EN50091-2: 1995] Surge Protection: IEEE/ANSI C.62.41 & 2KV, L-N Certifications: TUV Rhineland certified to UL Standard 1779, CSA Standard 107.3 & FCC Part15A (EMC) specifications
