BRAND: Ubiquiti
Ubiquiti

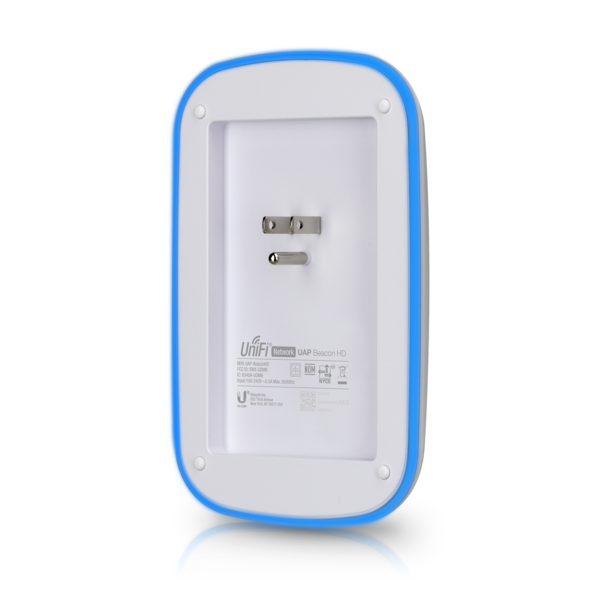

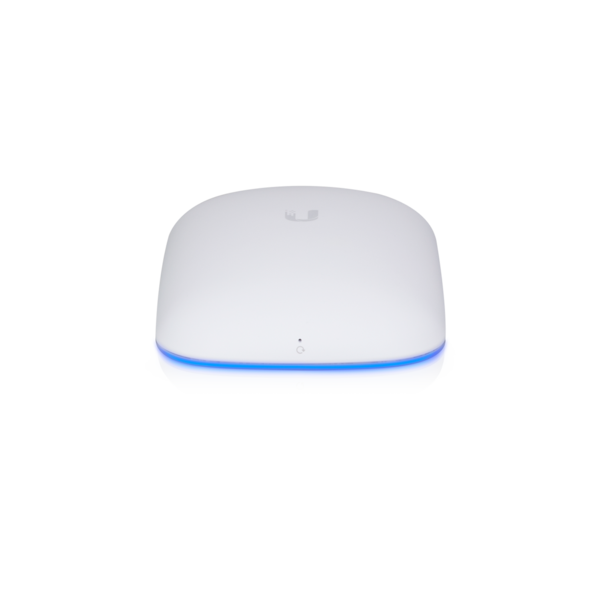

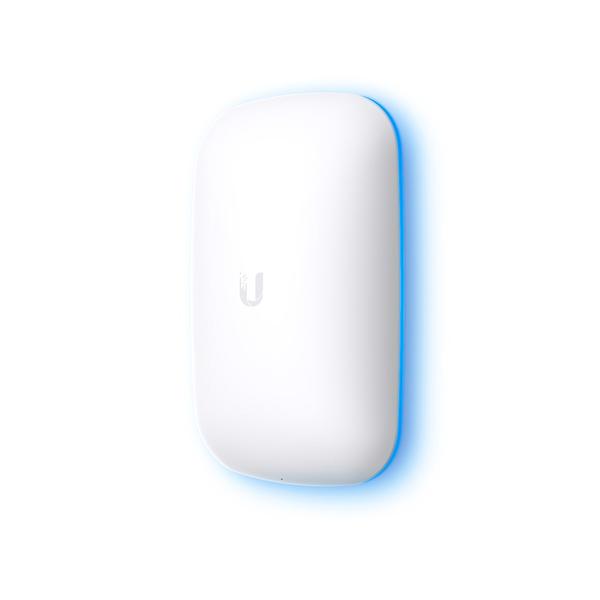

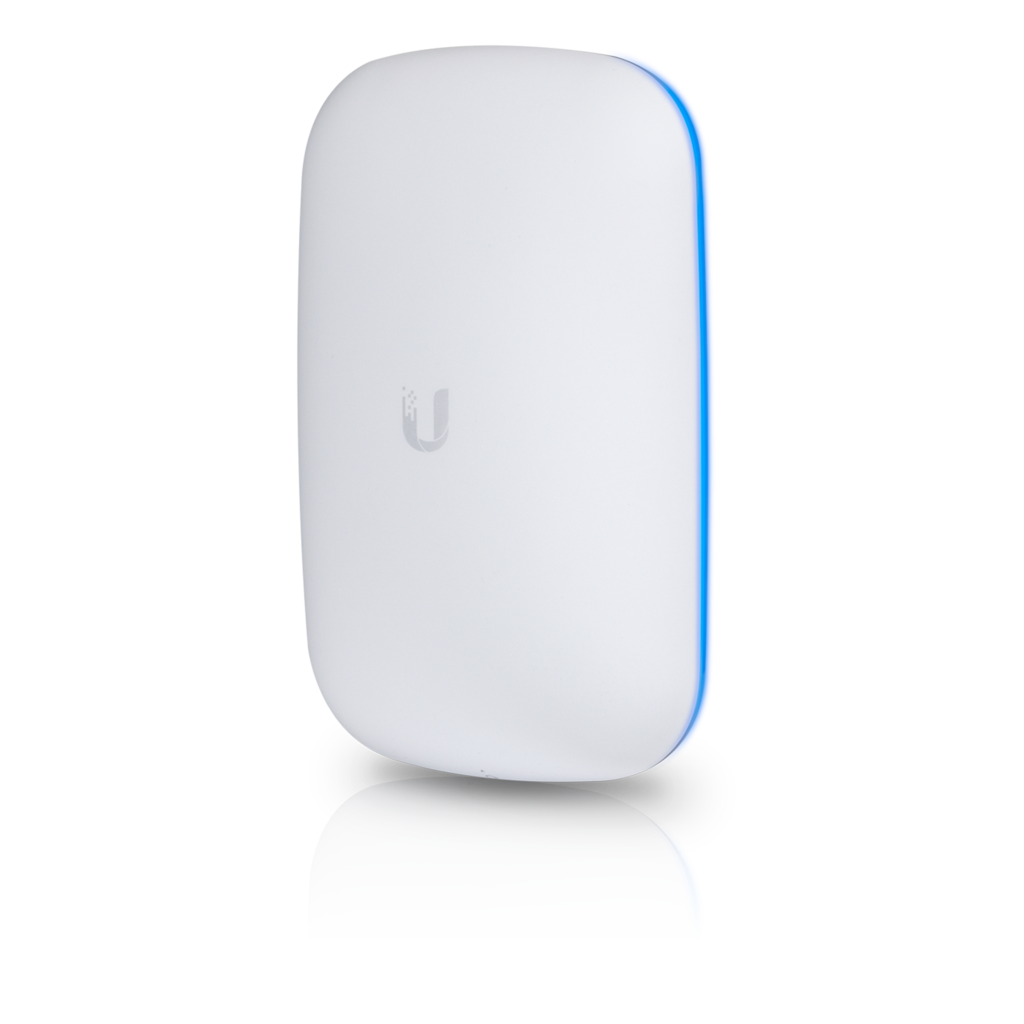

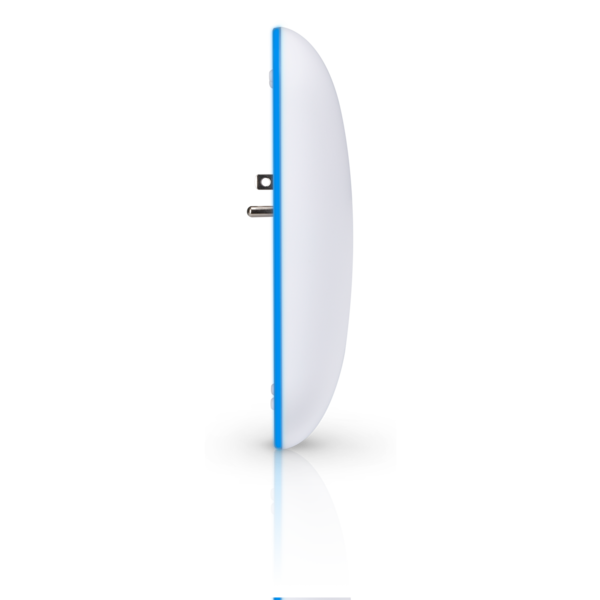

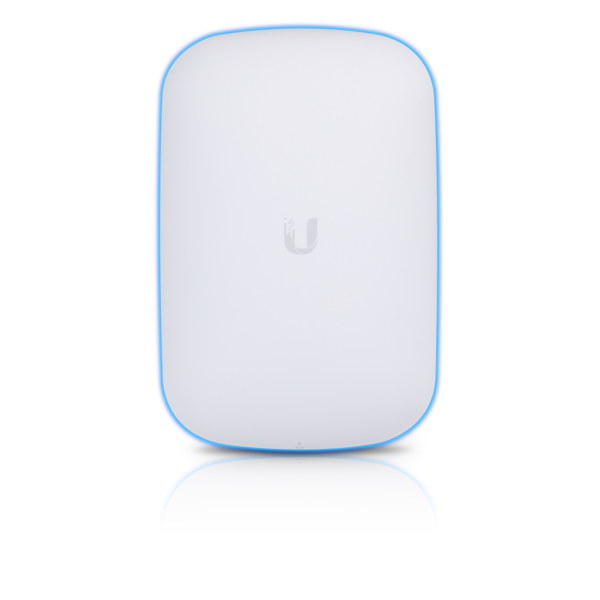

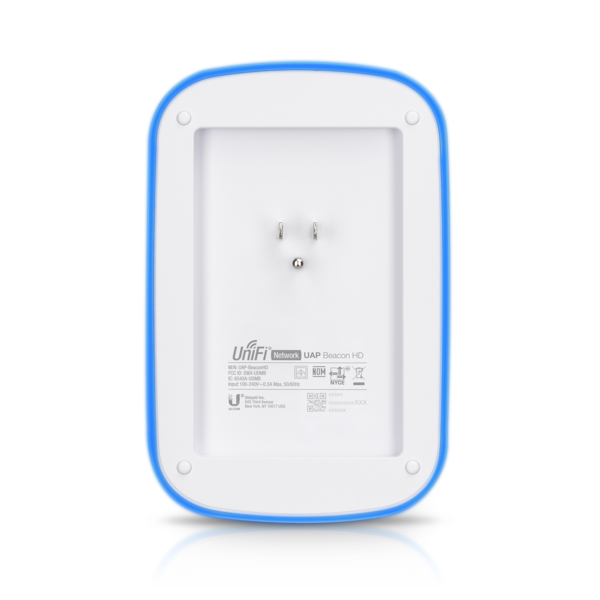

UniFi AP BeaconHD Wi-Fi MeshPoint

$129.00

Out of stock

SKU: UAP-BeaconHD-US Category:

UniFi AP BeaconHD Wi-Fi MeshPoint

Brand

Ubiquiti

Dimensions

169.7 x 112.15 x 32.2 mm (6.68 x 4.42 x 1.27")

Weight

260 g (9.17 oz)

Networking Interfaces

Wi-Fi

Buttons

Reset

LED

System Status

Processor

880 MHz MIPS 1004KEc

System Memory

128 MB SDRAM

Maximum Power Consumption

11.5W

Supported Voltage Range

100 – 240VAC, 0.3A Max., 50/60 Hz

Power Method

AC

Power Supply

AC

Power Save

Supported

Beamforming

Supported

Operating Frequency

2.4 GHz
5 GHz

TX Power* (EIRP) 2.4 GHz

24.8 dBm

TX Power* 5 GHz

30 dBm

Wi-Fi Standards

802.11 a/b/g/n/ac/ac-wave2

Wireless Security

WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF

BSSID

Up to 8 per Radio

Operating Temperature

-10 to 60° C (14 to 140° F)

Operating Humidity

5 to 95% Noncondensing

Certifications

CE, FCC, IC

(2) Dual-Band

2.4 GHz — 4.5 dBi
5 GHz — 5 dBi

(2) Single-Band

5 GHz — 5 dBi

VLAN

802.1Q

Advanced QoS

Per-User Rate Limiting

Guest Traffic Isolation

Supported

WMM

Voice, Video, Best Effort, and Background

SUPPORTED DATA RATES

MBPS

802.11a

6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n

6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)

802.11ac Wave 2

6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80)
58 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 160)

802.11b

1, 2, 5.5, 11 Mbps

802.11g

6, 9, 12, 18, 24, 36, 48, 54 Mbps
